The rack cutting DIGITEC consists of four cards and power supply.
The housing for the DIGITEC boards is an aluminium RACK with a black anodised front panel and (28TE x
6HE) dimensions that permits the housing of up to 7 Double European format boards.
A Backplane (DIGITEC board 018.0) is mounted at the rack’s upper rear part, and given that it is an AT 96
standard BUS, it serves the purpose of interconnecting the boards on the rack.
Its lower part houses the connectors that permit the connection of all the signals coming from or going to the
field by means of a series of flat cables connected to Digitec 008 boards.
A feeder positioned on the outer left side of the rack provides the voltage necessary for the function of the
entire rack.
The following boards may be seen in sequence by looking at the rack from the front and moving from the left
to the right:
DIGITEC 013.2 board CPU
DIGITEC 011.0 board(s) Cutting management
DIGITEC 016.0 board (s) Digital I/O management
DIGITEC 017.0 board Analog I/O management
DD119rev0_gb.pdf date: 17/05/08
POWER SUPPLY:
The three voltages necessary for the rack (+5V, +12V, -12V) are provided by the feeder and wired towards
the Backplane in the rear part of the rack. The feeder has an automatically selected input voltage range from
127V/370 VAC/DC.
The maximum output currents are:
+5V 10A
+12V 4A
-12V 0,6A
DEVICE NET HMS AB4004: Ab4004 is a integrated fildbus communication module.

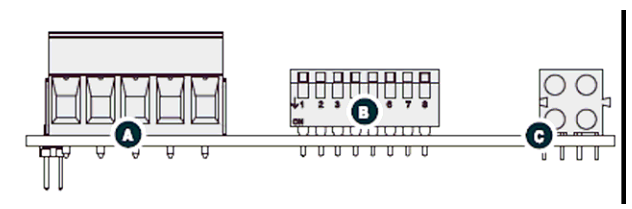

Fieldbus Connector (A)
The Anybus-S provides fieldbus connectors according to each fieldbus specification.
Configuration switches (B)
DIP switch select baud rate and MAC ID.
On a DeviceNet network, each node must be assigned it’s own unique Mac ID. The Mac ID is a value
between 0 an 63 used to identify each node. The Mac ID and Baud rate settings can be set either using a
physical DIP-switch or via the application interface using mailbox commands.

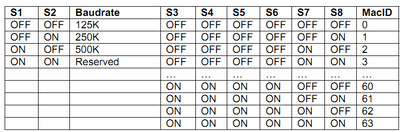

Switches 1 and 2 specify the baudrate, while switches 3 though 8 specify the Mac ID:
013.2 CPU CARD:
The 013.2 board is a CPU mounted on an AT96 Bus.
Connectors:
Mouse (AUX),
Keyboard (KBD),
Two serial gates (COM1 COM2),
Parallel gate (LPT1),
Video output (VGA)
Ethernet
It also provides the hard disk in which the software for the management of the entire cutting system is
memorised (using a PCMCIA ATA Board). MEMORY CARD.
The hard disk can be easily removed by pressing the black key positioned nearby.
Leds:
PW red Power on (5v)
SYS-OK red Run + Watch dog.
RU red Run
WD red Watch dog (it blinks when in run at 0.5 HZ frequency)
ER red Indicates an Error occurred in management program
HD red Indicates Read and Write operation on HARD DISK of PC
Comand Buttons and Dip Switches:
RUN-STOP selector permits the stopping or starting of process management.
Reset button triggers the system re-starting procedure and we therefore discourage its use during the
operation of the machine.

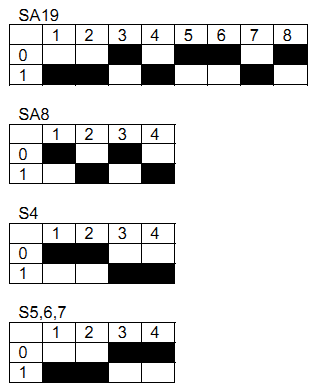

The board features a series of eight dip-switches that cannot be re-configured without compromising the
satisfactory operation of the system.
THE 011.0 POSITIONING AND CONTROL CUTTING SYSTEM CARDS:
This board generates a torque reference value for the drive that pilots the cutting carriage motor. All the
parameters required are set using the CPU (Board 013.2). The front part of the board features the test-points
and leds that we describe below:
Leds:
L1 green Pass = controlled by the PLC RA80.2 (RB80.2)
PROG yellow board in programming phase: it become Off after successfully boot program execution.
L3 red Off = material engaged presence photocell [note: with RA91.0 (RB91.0) at zero]
L4 red Off = cutting sensor enable
L5 red Off = synchro zone enable
L6 red Off = measurement cutting counter reset enable
L7 red Off = heat cutting counter reset enable
L8 red Controlled by PLC RA90.8 (RB90.8) 1 = Off
L9 red Controlled by PLC RA90.9 (RB90.9) 1 = Off
L10 red Not used
Test Points:
TP3 see led L3 Material presence photocell [note: with RA91.0 (RB91.0) at zero]
TP4 see led L4 Cutting sensor
TP5 see led L5 Synchro zone
TP6 see led L6 Measurement cutting counter reset enable
TP7 see led L7 Head cutting counter reset enable
TP8 see led L8 Controlled by PLC RA90.8 (RB90.8) 1 = Off
TP9 see led L9 Controlled by PLC RA90.9 (RB90.9) 1 = Off
TP10 see led L10 Not used
TP11 phase A - line encoder
TP12 phase B - line encoder
TP13 phase A - aux. encoder
TP14 phase B - aux. encoder
TP15 phase A -motor encoder
TP16 phase B - motor encoder
TP17 Positioning curve, cutting curve, motor reaction, reference according to setting RA98.8 RA98.9
(RB98.8 RB98.9)
TP18 Positioning curve, cutting curve, motor reaction reference according to setting RA98.6 RA98.7
(RB98.8 RB98.9)
Jumpers:
Jumpers are mounted inside the board for the filtration of certain signals from the field together with switches
for indexing and the consequent differentiation of one board from another. We provide the following
meanings below:
J5 connected = 5V operation of the line encoder Phase A
J14 connected = 5V operation of the line encoder Phase B
J6 connected = 5V operation of the aux encoder Phase A
J15 connected = 5V operation of the aux encoder Phase B
J7 connected = 5V operation of the motor encoder Phase A
J16 connected = 5V operation of the motor encoder Phase B
J13 connected = 5V operation of the cutting sensor
J8 Material photocell filter
J9 Cutting sensor filter
J10 Input 3 filter (10A - 10C terminals)
J11 Input 2 filter (9A - 9C terminals)
J12 Input 4 filter (11A - 11C terminals)
Buttons:
Button S1 (front of the board) board internal parameters reset
Button PU1 board programming reset

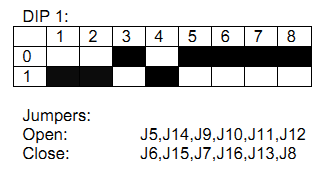

Dip Swithes:
The DIP1 switches identify the segment of the board’s indexing, and in particular serve for the decoding of
the segment’s two most significant digits.
THE 016.0 CARDS DIGITAL I/O
The 016.0 Board is used for interfacing the system with the field using digital signals. This board h
inputs with a range of 12V - 24V (even 5 V for 8 of these inputs, see jumpers) and 16 outputs at 2
voltage supplied from outside); each output can deliver a current of 350mA.
Leds:
The following leds are positioned on the front of the board with the meanings listed below:
L1 PROG yellow board in programming phase: it become Off after successfully boot progra
execution.
L2A IN 0 red terminal 1A input
L2B IN 1 red terminal 1C input
L3A IN 2 red terminal 2A input
L3B IN 3 red terminal 2C input
L4A IN 4 red terminal 3A input
L4B IN 5 red terminal 3C input
L5A IN 6 red terminal 4A input
L5B IN 7 red terminal 4C input
L6A IN 8 red terminal 6A input
L6B IN 9 red terminal 6C input
L7A IN 10 red terminal 7A input
L7B IN 11 red terminal 7C input
L8A IN 12 red terminal 8A input
L8B IN 13 red terminal 8C input
L9A IN 14 red terminal 9A input
L9B IN 15 red terminal 9C input
L10A IN 16 red terminal 10A input
L10B IN 17 red terminal 10C input
L11A IN 18 red terminal 11A input
L11B IN 19 red terminal 11C input
L12A IN 20 red terminal 12A input
L12B IN 21 red terminal 12C input
L13A IN 22 red terminal 13A input
L13B IN 23 red terminal 13C input
L14A IN 24 red terminal 14A input
L14B IN 25 red terminal 15A input
L15A IN 26 red terminal 16A input
L15B IN 27 red terminal 17A input
L16A IN 28 red terminal 18A input
L16B IN 29 red terminal 19A input
L17A IN 30 red terminal 20A input
L17B IN 31 red terminal 21A input
L18 POW OUT green output circuit power supply presence
L19 FAULT red short-circuit on one of the outputs 0 - 7
L20A OUT 0 red terminal 24A output
L20B OUT 1 red terminal 24C output
L21A OUT 2 red terminal 25A output
L21B OUT 3 red terminal 25C output
L22A OUT 4 red terminal 26A output
L22B OUT 5 red terminal 26C output
L23A OUT 6 red terminal 27A output
L23B OUT 7 red terminal 27C output
L24 FAULT red short-circuit on one of the outputs 8 - 15
L25A OUT 8 red terminal 28A output
L25B OUT 9 red terminal 28C output
L26A OUT 10 red terminal 29A output
L26B OUT 11 red terminal 29C output
L27A OUT 12 red terminal 30A output
L27B OUT 13 red terminal 30C output
L28A OUT 14 red terminal 31A output
L28B OUT 15 red terminal 31C output
Jumper’s:
There are 8 double jumpers inside the board with the following meaning:
JP1 disconnected = 15A - 15C terminals input (normal) from 8V to 24V without filter
connected at 5V= 15A - 15C terminals input at 5V
connected at F= 15A - 15C terminals input from 8V to 24 V with filter
JP2 disconnected = 14A - 14C terminals input (normal) from 8V to 24 V without filter
connected at 5V= 14A - 14C terminals input at 5V
connected at F= 14A - 14C terminals input from 8V to 24 V with filter
JP3 disconnected = 17A - 17C terminals input (normal) At from 8V to 24 V without filter
connected at 5V= 17A - 17C terminals input at 5V
connected at F= 17A - 17C terminals input at from 8V to 24 V with filter
JP4 disconnected = 16A - 16C terminals input (normal) from 8V to 24 V without filter
connected at 5V= 16A - 16C terminals input at 5V
connected at F= 16A - 16C terminals input from 8V to 24 V with filter
JP5 disconnected = 19A - 19C terminals input (normal) from 8V to 24 V without filter
connected at 5V= 19A - 19C terminals input at 5V
connected at F= 19A - 19C terminals input from 8V to 24 V with filter
JP6 disconnected = 18A - 18C terminals input (normal) from 8V to 24 V without filter
connected at 5V= 18A - 18C terminals input at 5V
connected at F= 18A - 18C terminals input from 8V to 24 V with filter
JP7 disconnected = 21A - 21C terminals input (normal) from 8V to 24 V without filter
connected at 5V= 14A - 14C terminals input at 5V
connected at F= 14A - 14C terminals input from 8V to 24 V with filter
JP8 disconnected = 20A - 20C terminals input (normal) from 8V to 24 V without filter
connected at 5V= 20A - 20C terminals input at 5V
connected at F= 20A - 20C terminals input from 8V to 24 V with filter
Dip Switches:
The switches identify the segment of the board’s indexing, and in particular serve for the decoding of the
segment’s most significant three digits.
THE 017.0 CARDS ANALOGIC I/O
This board with 8 inputs and 4 outputs is used for interfacing the field using analog signals.
The two ranges available for the inputs are 0 - 10V or 0 - 20mA, while the outputs range from 0 - 10V.
Leds:
+5V green indicates the presence of the power supply
L1 PROG yellow board in programming phase: it become Off after successfully boot program
execution.
Test Points:
Analog IN CH0 first analog input
Analog IN CH1 second analog input
Analog IN CH2 third analog input
Analog IN CH3 fourth analog input
Analog IN CH4 fifth analog input
Analog IN CH5 sixth analog input
Analog IN CH6 seventh analog input
Analog IN CH7 eighth analog input
IN GND common analog inputs
Analog OUT CH0 first analog output
Analog OUT CH1 second analog output
Analog OUT CH2 third analog output
Analog OUT CH3 fourth analog output
OUT GND common analog outputs
Dip Switches:
The switches identify the segment of the board’s indexing, and in particular serve for the decoding of the
segment’s three most significant digits.
POWER-UP SEQUENCE:
The following steps indicate the sequence of power-up.
- Programming card
After a power up of the rack ,the system operation loads the programs serving to initialize the Card 011.0,
016.0, 017.0. If the programming was successful, the led named PROG in the cards (011.0; 016.0; 017.0)
(yellow) goes off. The led on 013.2 named HD blinks quickly until the initialization program was finish.
- Initialization phase
When the programming card finish, the management program loads the initialization function.
During this phase the red led Fault on 016 card goes off.

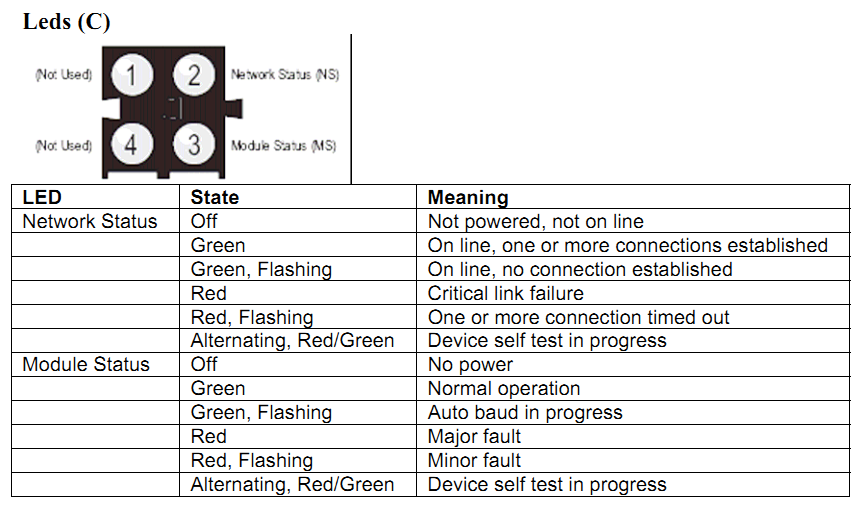

Field bus: the device net of the AB4004 card has a led blinking sequence from red to green. Finally if the left
led is green it means the initialization of the module was successful; if the communication was established
with the master plc on the net: the right led became green.
- Run mode
During a normal execution of management program the led RUN of the 013.2 card is always ON, and the led
WD blinks with a 0.5 Hz frequency.
- Bad execution
If during a normal execution the management program stops and restart the power-up sequence: means that
there is a problem on 5V feeder alimentation (power).
SUBSTITUTION CARDS:
The following important steps must be taken when replacing any DIGITEC card:
- make sure that the new board’s identification number located on the front panel’s lower handle or printed
onto the board itself (e.g. 011.0) is the same as the one on the board being replaced, unless differently
indicated by DIGITEC.
- make sure that the number written after the letters AR printed on the board are equal to or greater than the
number on the board to be replaced.
- position all the switches in the same position that they occupied previously in the board where they have to
be replaced.
- position all the jumpers in the same position that they occupied previously in the board where they have to
be replaced.
CUSTOMIZATIONS:
011.0 Card:
Jumpers:
Open: J5,J14,J9,J10,J11,J12
Close: J6,J15,J7,J16,J13,J8
016.0 Card:
017.0 Card:
SA19
SA8
|
