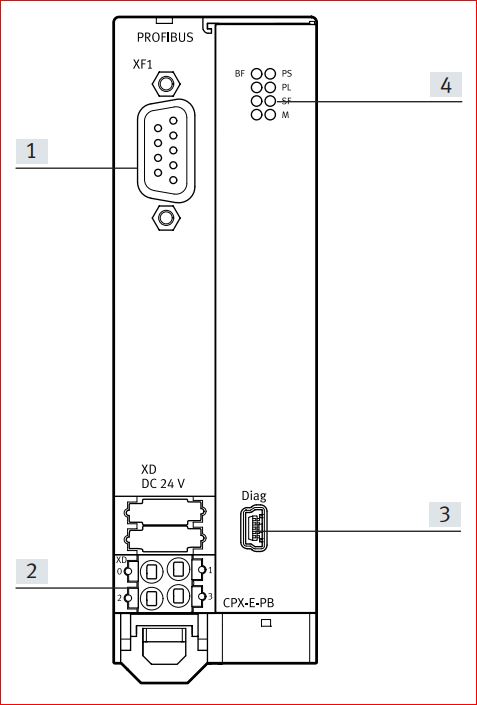

Festo I/O system CPX-E - CPX-E-PB 4080496 - Actuation via PROFIBUS
CPX_E_Profibus_GSE_27092019.zip - FES_0FA3.gse Version 5 (27.09.2019) English [en]
CPX_E_Profibus_GSF_27092019.zip - FES_0FA3.gsf Français [fr]
CPX_E_Profibus_GSG_27092019.zip - FES_0FA3.gsg Version 5 (27.09.2019) Deutsch [de]
;*****************************************************************************;
; Device master file for modular Festo I/O-sytem CPX-E ;
; Hersteller: Fa. FESTO AG & Co. KG, Ruiterstrasse 82, 73734 Esslingen ;
; Version 5 ;
;*****************************************************************************;
; FESTO Hotline-Tel.: 0711/347-3000 ;
;*****************************************************************************;
;
;-----------------------------------------------------------------------------
#Profibus_DP
;------------------ Unit-Definition-List ------------------
GSD_Revision = 5
Vendor_Name = "Festo AG & Co. KG"
Model_Name = "CPX-E"
Info_Text = "Festo I/O system CPX-E"
Revision = "3"
Ident_Number = 0x0FA3
Protocol_Ident = 0
Station_Type = 0
FMS_supp = 0
Hardware_Release = "2"
Software_Release = "3"
; DP-Geraet unterstuetzt die Baudraten
9.6_supp = 1
19.2_supp = 1
;31.25_supp = 1
;45.45_supp = 1
93.75_supp = 1
187.5_supp = 1
500_supp = 1
1.5M_supp = 1
3M_supp = 1
6M_supp = 1
12M_supp = 1
;
MaxTsdr_9.6 = 20
MaxTsdr_19.2 = 20
;MaxTsdr_31.25 = 60
;MaxTsdr_45.45 = 400
MaxTsdr_93.75 = 20
MaxTsdr_187.5 = 20
MaxTsdr_500 = 20
MaxTsdr_1.5M = 25
MaxTsdr_3M = 50
MaxTsdr_6M = 100
MaxTsdr_12M = 200
;
Redundancy = 0
Repeater_Ctrl_Sig = 2
24V_Pins = 0
Implementation_Type = "VPC3+S"
;
Bitmap_Device = "PB-CPX-E" |
