Configuration
A SIMATIC S7-1200 CPU with firmware V4.2.1 is used as the controller.
It exchanges the motor data with up to 32 ebm-papst fans sequentially using the serial communication board CB 1241 RS485 via the Modbus RTU data protocol.

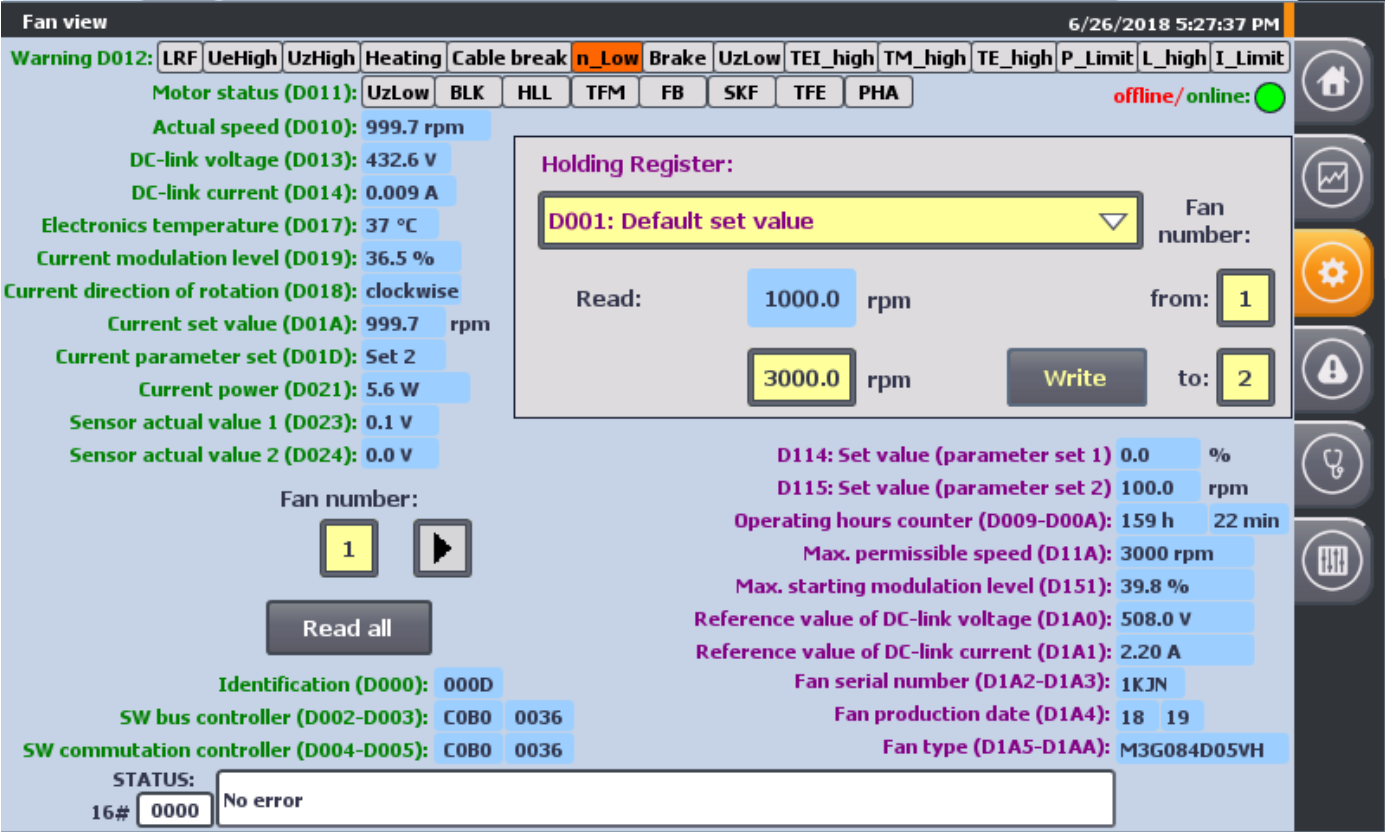

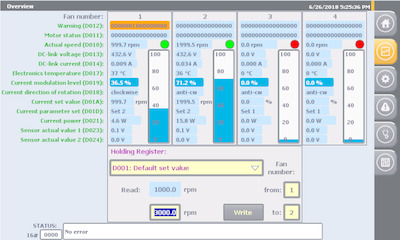

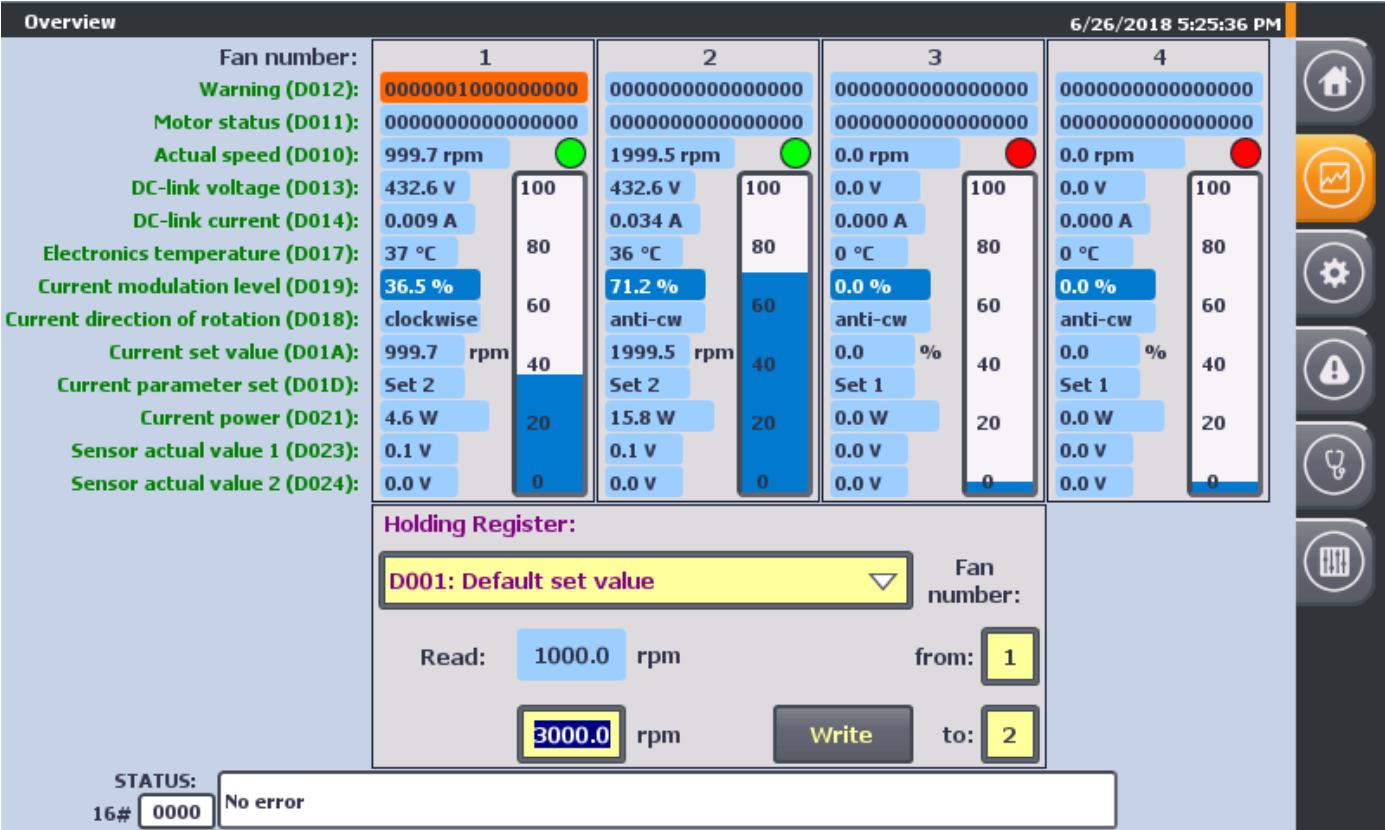

To operate and monitor the motor data, a SIMATIC HMI KTP900 BASIC (or its simulation in the TIA Portal) is used. Configuration is performed with STEP 7 V15.1.
