Delta Extended Motion Controller DXMC Series

The DXMC Series is an advanced synchronous multi-axis motion controller with max. 32 real axes and 64 virtual axes control. It provides tension control, rotary cut, flying shear and E-CAM function blocks with user-friendly program editing for a wide range of industry applications, including packaging machines, printing machines, winding machines and industrial robots. In addition, the DXMC Series features optional Multiprog PLC or Delta Motion Kernel to provide a flexible and customized motion control platform for machine upgrades and smart equipment.

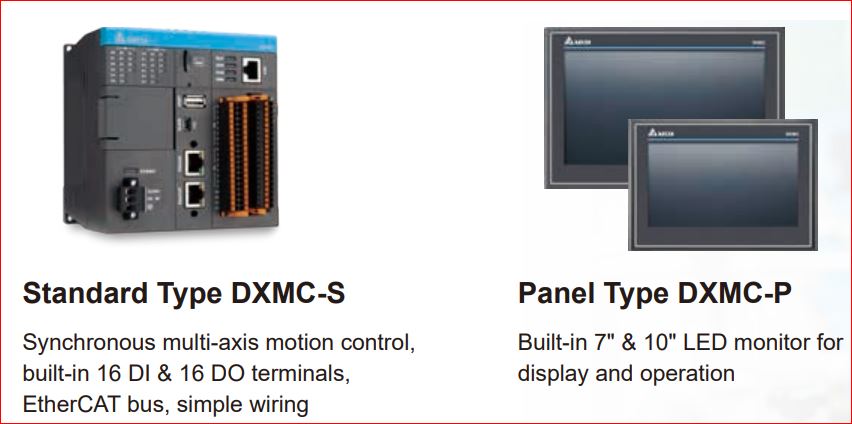

To meet various user requirements, the DXMC Series includes Standard Type DXMC-S and Panel Type DXMC-P:

Standard Type DXMC-S supports various communication modes to connect the host controllers and field devices with high immediacy, speed, precision and flexibility:

• Ethernet: for connection with computers or host controllers
• EtherCAT: for communication with the Delta Servo Drive ASDA Series
• CANopen: offers expandable I/O modules • Built-in 16 DI / 16 DO terminals
• SSI encoder signal and 2 sets of differential encoder signals
• Built-in 1 RS-485 COM port

Panel Type DXMC-P features high brightness and contrast built-in LED monitor as operation interface. It integrates motion control functions and supports various communications:

• Ethernet: for connection with computers or host controllers
• EtherCAT: for high-speed communication with the Delta Servo Drive ASDA Series
• RS-232 / RS-422 / RS-485 COM ports: for connection with peripheral devices
