GSD-file for product PVS58/PSS58/PVM58/PSM58-Class 2 Encoder PFDG5046.GSD - PFDG5046.GSD

;===============================================================
; GSD-file for product PVS58/PSS58/PVM58/PSM58-Class 2
; Class2 + diagnostic LED + manufacturer-specific
; Fa. Pepperl+Fuchs GmbH, Koenigsberger Allee 87, D-68307 Mannheim
; Telefon: (++49 621) 776-0, Fax: ++49 621 776-1000
; Version 4.2
; Update to Resolution 1416 18.12.2012 / RBA
; Changed ExtUserPrmData=25 "Desired Measuring steps" from
; Unsigned16 to Unsigned32 + Rev. to 3.2 / 2.10.2013 / RBA
; Changed "Measuring units per revolution"+"Total measuring range"
; +"Lower limit switch"+"Higher limit switch" to 65536
; + Rev. to 3.3  14.10.2013 / RBA
; +"Lower limit switch"+"Higher limit switch" to 65535
; + Rev. to 3.4  14.10.2013 / RBA
; Use of 32Bit values instead of division
; into high and low word
; + Rev. to 4.2    8.8.2014  /    RBA
;===============================================================  ... Читать дальше »

PF2079.gsd - PF2079.gsd

#Profibus_DP
; Historie
; Дnderung 26.06.07
; ROP(P+F) Vendor_Name to "Pepperl+Fuchs"
; Slave_Family     from 9 to 9@Pepperl+Fuchs@WCS
; Module Names to reading head

GSD_Revision        = 1
;
Vendor_Name         = "Pepperl+Fuchs"
Model_Name          = "WCS-PG210"
Revision            = "V1.5"
Ident_Number        = 0x2079
Protocol_Ident      = 0
Station_Type        = 0
FMS_supp            = 0
Hardware_Release    = "Revision G"
Software_Release    = "V4.43"
OrderNumber        = "WCS-PG210"  ... Читать дальше »

PG210e.gsd - 1831357.zip

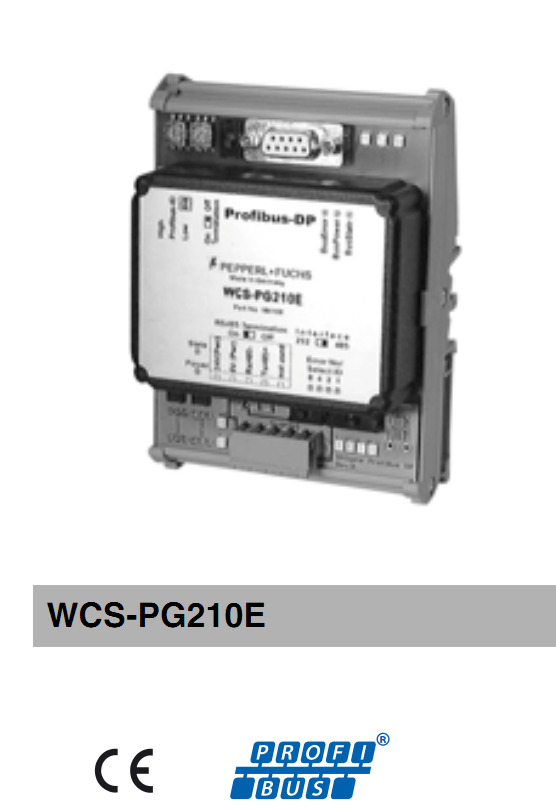

202964_eng.pdf - PROFIBUS interface WCS interface module WCS-PG210E Datasheet

tdoct3786a_eng.pdf - Manual WCS Position Encoding System Electrical

tdoct3785c_eng.pdf - WCS position encoding system Mechanics Manual

tdoct1329_eng.pdf - Instruction manual WCS interface module PROFIBUS WCS-PG201E

#Profibus_DP
;
; Historie:
; =========
; V5.9  15.12.2003 La GSD_Revision auf 3 erhцht, "Publisher_supp = 1" eingefьgt, 3 User-Para neu
; V7.31 20.05.2007 La Erweiterung um Speed-Ьbertragung
;
;
GSD_Revision        = 3
;
Vendor_Name         = "PEPPERL+FUCHS"
Model_Name          = "WCS-PG210e"
Revision            = "V7.31"
Ident_Number        = 0x2079
Protocol_Ident      = 0
Station_Type        = 0
FMS_supp            = 0
Hardware_Release    = "Revision R"
Software_Release    = "V7.31"
OrderNumber                 = "WCS-PG210e"  ... Читать дальше »
