The rack cutting DIGITEC consists of four cards and power supply.
The housing for the DIGITEC boards is an aluminium RACK with a black anodised front panel and (28TE x
6HE) dimensions that permits the housing of up to 7 Double European format boards.
A Backplane (DIGITEC board 018.0) is mounted at the rack’s upper rear part, and given that it is an AT 96
standard BUS, it serves the purpose of interconnecting the boards on the rack.
Its lower part houses the connectors that permit the connection of all the signals coming from or going to the
field by means of a series of flat cables connected to Digitec 008 boards.
A feeder positioned on the outer left side of the rack provides the voltage necessary for the function of the
entire rack.

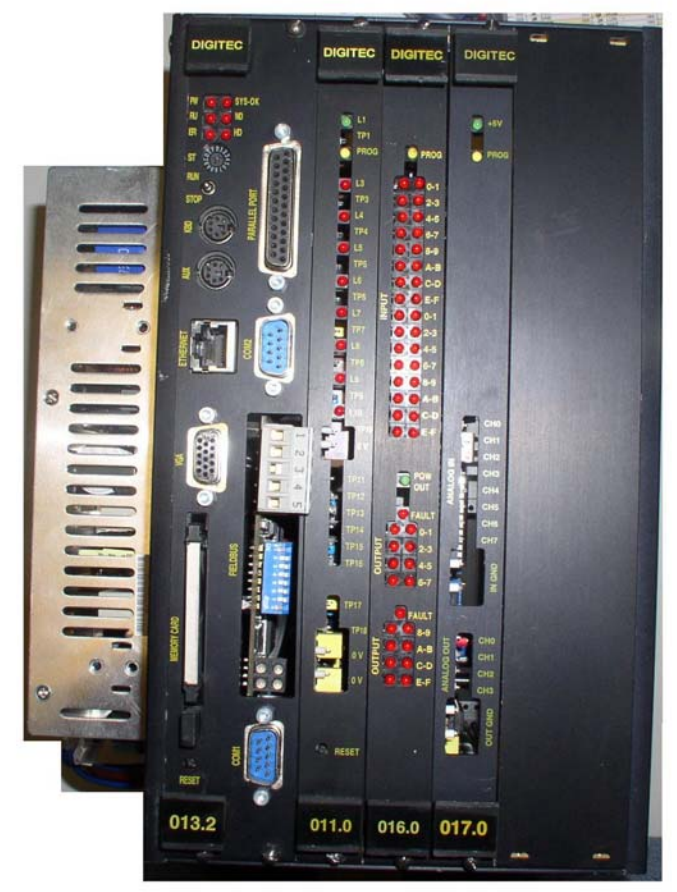

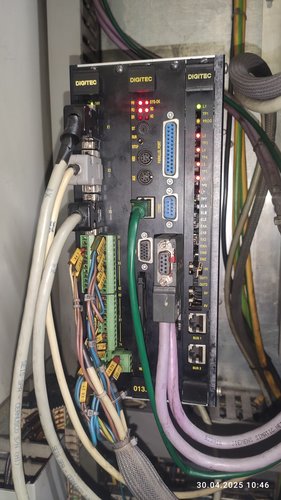

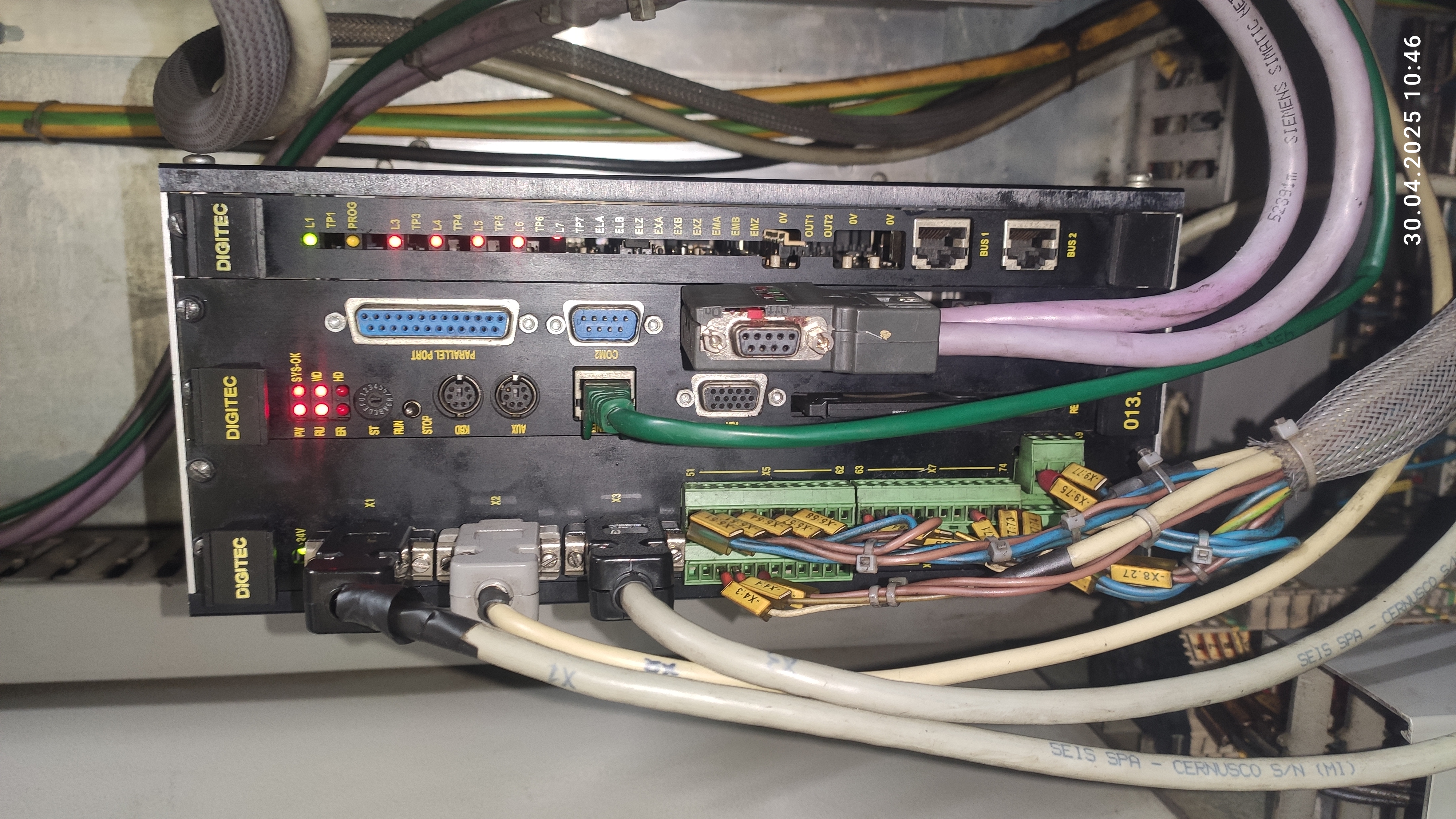

The following boards may be seen in sequence by looking at the rack from the front and moving from the left
to the right:
DIGITEC 013.2 board CPU
DIGITEC 011.0 board(s) Cutting management
DIGITEC 016.0 board (s) Digital I/O management
DIGITEC 017.0 board Analog I/O management
...
