FESTO Fieldbus Direct, CPV PROFIBUS GSD cpv_0a35.gsd SC_0A44.gsd VI1000C9.GSD

FESTO Fieldbus Direct, CPV-DI02-8 PROFIBUS GSD - cpv_0a35.gsd

Profibus GSD and GSE files for Festo CPV (size CPV10, CPV14, CPV18), CPA-SC and CPV-SC valve terminals - GSD-CPV.zip

Supported systems:

Electrical interface CPV10-GE-DI01-8 (165809)
Electrical interface CPV10-GE-DI02-8 (546188)
Electrical interface CPV14-GE-DI01-8 (165811)
Electrical interface CPV14-GE-DI02-8 (546190)
Electrical interface CPV18-GE-DI01-8 (165813)
Electrical interface CPV18-GE-DI02-8 (546192)
Valve terminal CPA-SC-FB-VI (538509)
Valve terminal CPV10-VI (18200)
Valve terminal CPV14-VI (18210)
Valve terminal CPV18-VI (18220)
Valve terminal CPV-SC-FB-VI (538510)

CPA-SC - SC_0A44.gsd, SC_0A44.gse

CPV-DI01 - VI1000C9.GSD, VI1000C9.GSE

CPV-DI02 - cpv_0A35.gsd, cpv_0A35.gse

CPV-SC - SC_0A44.gsd, SC_0A44.gse

CPV10_14-GE-DI02-8_operating-instr_2022-03b_8160533g1.pdf - operating instructions CPV10_14-GE-DI02-8

Пневмоостров CPV с прямым подключением типа CPV...-DI02 PROFIBUS-DP - Short_description_CPVDI02RU.pdf

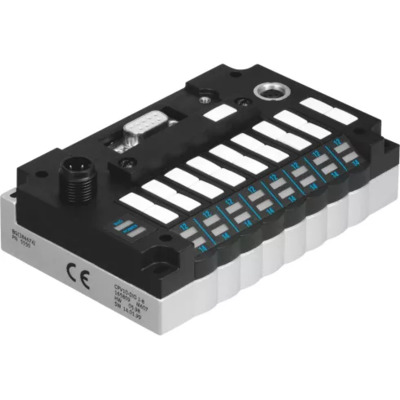

Types CPV10-GE-DI02-8, CPV14-GE-DI02-8, CPV18-GE-DI02-8

CPV fieldbus node according to the CP system with Specification “B” for communication between a CPV valve terminal and a fieldbus master. The fieldbus node is used for activation of a CPV valve terminal with 8 valve slices and 16 solenoid coils and for displaying the switching status via LED. The CPV-… valves are activated via automatic current reduction, which results in less power consumption and heat emission. 32 digital inputs and outputs or 32 solenoid coils can be connected via a serial CP string extension. The CPV fieldbus node is available in three sizes, with identical performance characteristics: CPV10 CPV14 CPV18.

GSD FILE DECRIPTION

;*****************************************************************************;
; Geraetestammdatei fuer CPV-Ventilinsel mit direktem Profibus DP-AnschluЯ ;
; Hersteller: Fa. FESTO AG&Co., Ruiterstrasse 82, 73734 Esslingen ;
; FESTO Hotline-Tel.: 0711/347-3000 ;
;*****************************************************************************;
#Profibus_DP
GSD_Revision = 5
Vendor_Name = "Festo AG&Co."
Model_Name = "Festo CPV-DI02"
Revision = "28.06.06"
Ident_Number = 0x0A35
Protocol_Ident = 0
Station_Type = 0
FMS_supp = 0
Hardware_Release = "12.05"
Software_Release = "V1.3"
;
9.6_supp = 1
19.2_supp = 1
93.75_supp = 1
187.5_supp = 1
500_supp = 1
1.5M_supp = 1
3M_supp = 1
6M_supp = 1
12M_supp = 1
;
MaxTsdr_9.6 = 20
MaxTsdr_19.2 = 20
MaxTsdr_93.75 = 20
MaxTsdr_187.5 = 20
MaxTsdr_500 = 20
MaxTsdr_1.5M = 25
MaxTsdr_3M = 50
MaxTsdr_6M = 100
MaxTsdr_12M = 200
;
Redundancy = 0
Repeater_Ctrl_Sig = 2
24V_Pins = 0
Implementation_Type = "SPC3"
Bitmap_Device = "pb_dicpn"
;Bitmap_Diag = "pb_dicpd"
;Bitmap_SF = "pb_dicps"
;
Freeze_Mode_supp = 1
Sync_Mode_supp = 1
Auto_Baud_supp = 1
Set_Slave_Add_supp = 0
Min_Slave_Intervall = 0x0005
;
Modular_Station = 1
Max_Module = 0x05
Max_Input_Len = 0x04
Max_Output_Len = 0x06
Max_Data_Len = 0x000A
Modul_Offset = 1
;
Fail_Safe = 0
Slave_Family = 4
Max_Diag_Data_Len = 0x0010
;
Unit_Diag_Bit(8) = "CP-Anschluss zu Ausgangsmodul"
Unit_Diag_Bit(9) = "CP-Anschluss zu Eingangsmodul"
Unit_Diag_Bit(10) = "Kurzschluss/Ueberlast Ausgang"
Unit_Diag_Bit(11) = "Lastspg.ausfall Ausgangsmodul"
Unit_Diag_Bit(12) = "Sensorversorgung < 10V"
Unit_Diag_Bit(13) = "Versorgungsspg.Ventile < 20.4V"
Unit_Diag_Bit(14) = "Versorgungsspg.Ventile < 10V"
Unit_Diag_Bit(15) = "kein Update-Betrieb"
Unit_Diag_Bit(16) = "Fehler Basismodul"
Unit_Diag_Bit(17) = "Fehler 1. CP- Modul"
Unit_Diag_Bit(18) = "Fehler 2. CP- Modul"
Unit_Diag_Bit(19) = "Fehler 3. CP- Modul"
Unit_Diag_Bit(20) = "Fehler 4. CP- Modul"
;
Max_User_Prm_Data_Len = 0x1E

;------------------Definition der Parametertexte-----------------

PrmText = 1 ; Referenznummer 1
Text(0) = "inaktiv"
Text(1) = "aktiv"
EndPrmText

PrmText = 2 ; Referenznummer 2
Text(0) = "Ausgaenge zuruecksetzen"
Text(1) = "Ausgaenge Fault Mode"
Text(2) = "Ausgaenge Hold Last State"
EndPrmText

ExtUserPrmData = 1 "Monitor U-Last" ; Referenznummer 1
Bit(1) 1 0-1 ; Default = 1, Min = 0, Max = 1
Prm_Text_Ref = 1 ; Verweis auf Text-Definition 1
EndExtUserPrmData

ExtUserPrmData = 2 "Monitor Fehler CP-Line" ; Referenznummer 2
Bit(7) 1 0-1 ; Default = 1, Min = 0, Max = 1
Prm_Text_Ref = 1 ; Verweis auf Text-Definition 1
EndExtUserPrmData

ExtUserPrmData = 3 "Fault Mode" ; Referenznummer 3
BitArea(0-1) 0 0-2 ; Default = 0, Min = 0, Max = 3
Prm_Text_Ref = 2 ; Verweis auf Text-Definition 2
EndExtUserPrmData

ExtUserPrmData = 4 "Fault State 1byte" ; Referenznummer 4
unsigned8 0 0-255 ; Default = 0, Min = 0, Max = 255
EndExtUserPrmData

ExtUserPrmData = 5 "Fault State 2byte" ; Referenznummer 5
unsigned16 0 0-65535 ; Default = 0, Min = 0, Max = 65535
EndExtUserPrmData

ExtUserPrmData = 7 "Fault State 3byte" ; Referenznummer 7
unsigned32 0 0-16777215 ; Default = 0, Min = 0, Max = 16777215
EndExtUserPrmData

ExtUserPrmData = 8 "Fault State 4byte" ; Referenznummer 8
unsigned32 0 0-4294967295 ; Default = 0, Min = 0, Max = 4294967295
EndExtUserPrmData

ExtUserPrmData = 6 "Parameterbyte" ; Referenznummer 6
unsigned8 91 0-255 ; Default = 91, Min = 0, Max = 255
EndExtUserPrmData

;-------------------- Modultypen -------------------------
; <Module-Definition-List>
Module = "Basis:16DA" 0x21
1
Ext_Module_Prm_Data_Len = 7
Ext_User_Prm_Data_Const(0) = 0x00, 0x00, 0x00, 0x82, 0x00, 0x00, 0x00
Ext_User_Prm_Data_Ref(3) = 1
Ext_User_Prm_Data_Ref(3) = 2
Ext_User_Prm_Data_Ref(4) = 3
Ext_User_Prm_Data_Ref(5) = 5
EndModule

Module = "CP-A08" 0x20
2
Ext_Module_Prm_Data_Len = 3
Ext_User_Prm_Data_Const(0) = 0x5B, 0x00, 0x00
Ext_User_Prm_Data_Ref(0) = 6
Ext_User_Prm_Data_Ref(1) = 3
Ext_User_Prm_Data_Ref(2) = 4
EndModule

Module = "CP-A16" 0x21
3
Ext_Module_Prm_Data_Len = 4
Ext_User_Prm_Data_Const(0) = 0x5B, 0x00, 0x00, 0x00
Ext_User_Prm_Data_Ref(0) = 6
Ext_User_Prm_Data_Ref(1) = 3
Ext_User_Prm_Data_Ref(2) = 5
EndModule

Module = "CP-A24" 0x22
4
Ext_Module_Prm_Data_Len = 6
Ext_User_Prm_Data_Const(0) = 0x5B, 0x00, 0x00, 0x00, 0x00, 0x00
Ext_User_Prm_Data_Ref(0) = 6
Ext_User_Prm_Data_Ref(1) = 3
Ext_User_Prm_Data_Ref(2) = 7
EndModule

Module = "CP-A32" 0x23
5
Ext_Module_Prm_Data_Len = 6
Ext_User_Prm_Data_Const(0) = 0x5B, 0x00, 0x00, 0x00, 0x00, 0x00
Ext_User_Prm_Data_Ref(0) = 6
Ext_User_Prm_Data_Ref(1) = 3
Ext_User_Prm_Data_Ref(2) = 8
EndModule

Module = "CP-E08" 0x10
6
Ext_Module_Prm_Data_Len = 1
Ext_User_Prm_Data_Const(0) = 0x5B
Ext_User_Prm_Data_Ref(0) = 6
EndModule

Module = "CP-E16" 0x11
7
Ext_Module_Prm_Data_Len = 1
Ext_User_Prm_Data_Const(0) = 0x5B
Ext_User_Prm_Data_Ref(0) = 6
EndModule

Module = "CP-E24" 0x12
8
Ext_Module_Prm_Data_Len = 1
Ext_User_Prm_Data_Const(0) = 0x5B
Ext_User_Prm_Data_Ref(0) = 6
EndModule

Module = "CP-E32" 0x13
9
Ext_Module_Prm_Data_Len = 1
Ext_User_Prm_Data_Const(0) = 0x5B
Ext_User_Prm_Data_Ref(0) = 6
EndModule

Module = "Werkzeugw. A/E:32/32" 0x33
10
Ext_Module_Prm_Data_Len = 9
Ext_User_Prm_Data_Const(0) = 0x5B, 0x5B, 0x5B, 0x5B, 0x00, 0x00, 0x00, 0x00, 0x00
Ext_User_Prm_Data_Ref(0) = 6
Ext_User_Prm_Data_Ref(1) = 6
Ext_User_Prm_Data_Ref(2) = 6
Ext_User_Prm_Data_Ref(3) = 6
Ext_User_Prm_Data_Ref(4) = 3
Ext_User_Prm_Data_Ref(5) = 8
EndModule
