SINUMERIK_PLC_Lib_V2.2_20220215.pdf - Library Manual

Sinumerik_PLC_Lib_V2.2_V17_20220215.zal17 - TIA Portal V17 Library

1. Disclaimer

The documents, PLC programs, machine tool executable programs (MPF, SPF, ...), and electrical diagrams included in this user manual and sample package may differ from actual user applications. Users may need to modify and adjust the example programs before testing them. The authors and owners of these examples assume no responsibility for their functionality and compatibility; the user assumes full risk of using them. As this is provided free of charge, no warranties, error correction, or hotline support are offered. Users do not need to contact Siemens technical support and service departments for these purposes. Siemens assumes no responsibility for any personal injury or property damage incurred during use; the user assumes all risks. The final interpretation of the above disclaimer rests with Siemens (China) Co., Ltd., and no further notice will be given for subsequent updates.

2. Overview

2.1 Overview This PLC library program is based on the Sinumerik 840Dsl (hereinafter referred to as SL) CNC system and designed using TIA software. It is also compatible with the Sinumeirk ONE system (hereinafter referred to as ONE system). Program blocks in the ONE directory are suitable for the ONE system, while program blocks in the 840DSL directory are suitable for the 840DSL system. To facilitate user use, this library file defines commonly used system signals and function block-related signals in the GlobalDB. Users need to adjust these according to their specific system. Example programs are also provided based on the GlobalDB signals, which users can modify according to their actual needs or directly interface with external I/O signals. This library file is not encrypted, and users can modify the program according to their actual needs. Since the program testing environment may differ from the user's actual usage environment, users need to repeatedly test each program block according to the actual situation before using it.

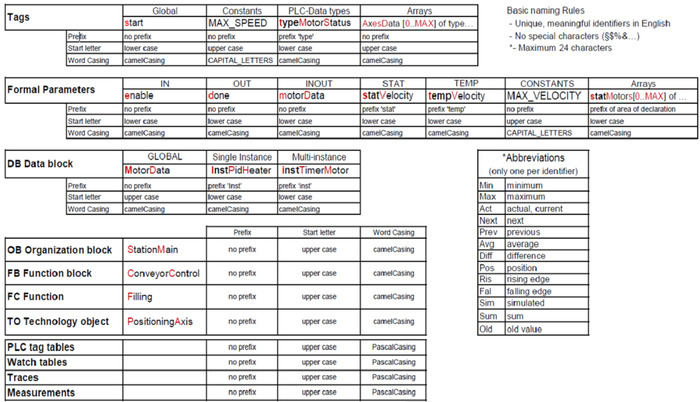

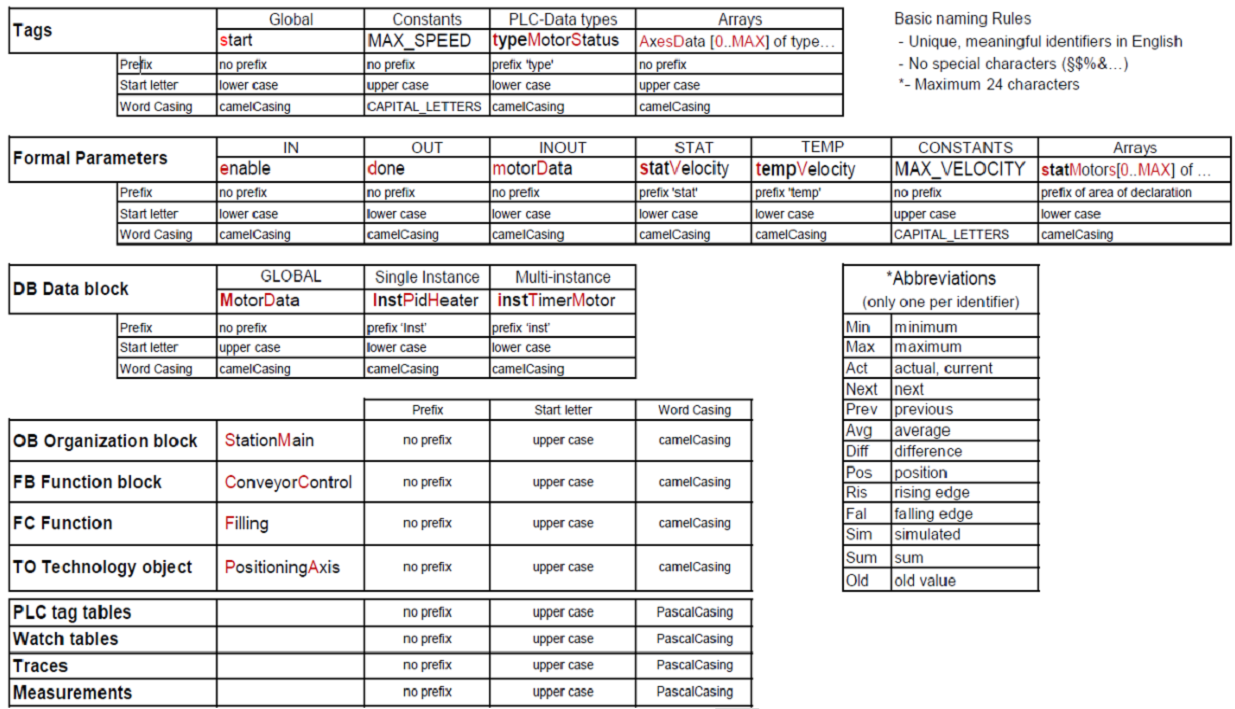

2.2 Naming Rules

CamelCase is used; please refer to the table below.

3 Requirements

3.1 Hardware Requirements

• SINUMERIK 840DSL
• SINUMERIK ONE

3.2 Software Requirements

• TIA Portal STEP 7 version >= V17.0

4. Library File Usage

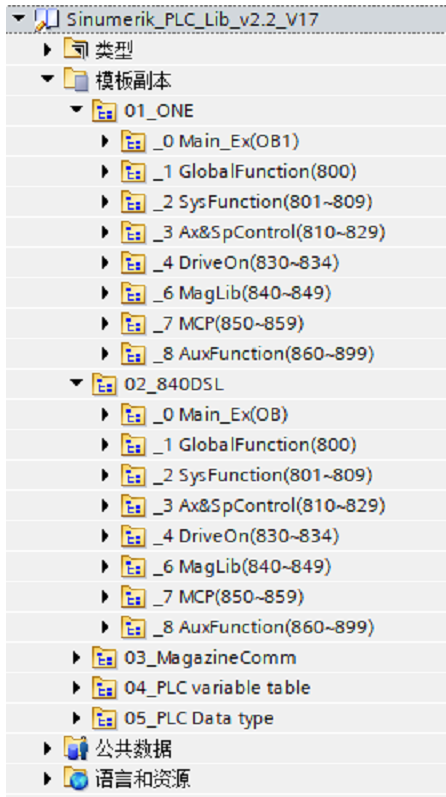

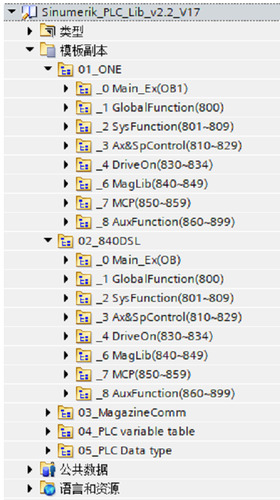

4.1 Library Files Contain Function Blocks

The PLC template is divided into 7 function areas, containing 13 program blocks.
