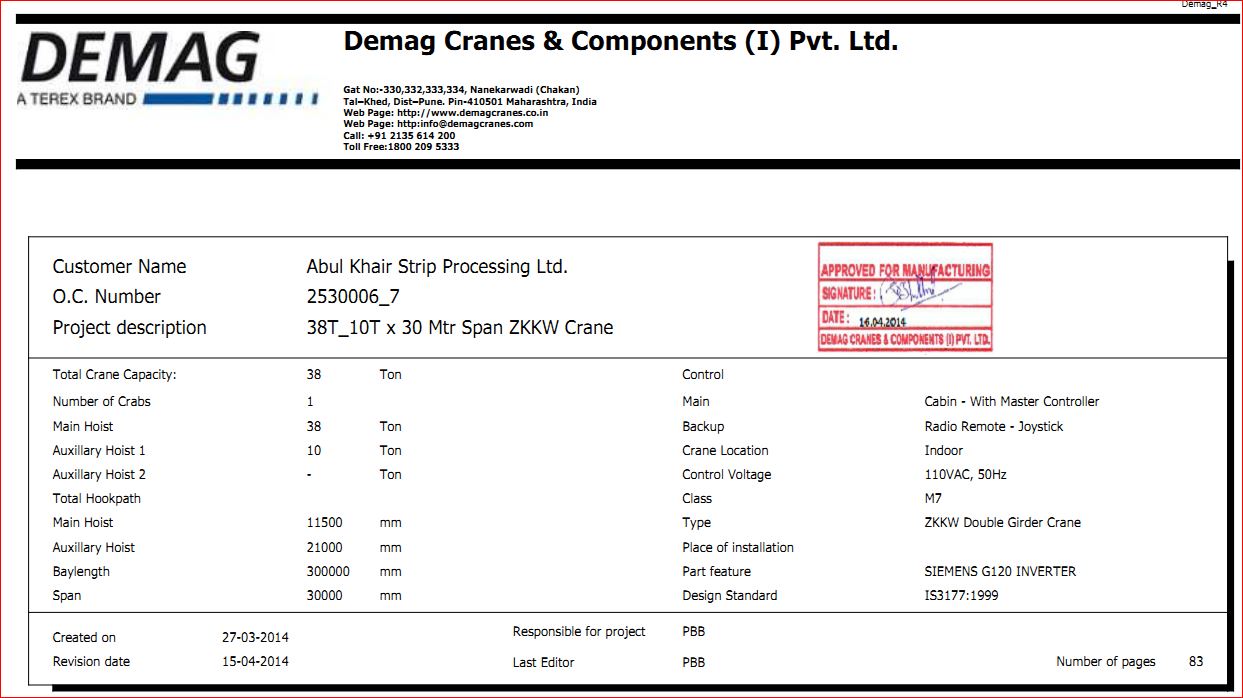

Crane-Electrical-Wiring-Diagram.pdf

Customer Name - Abul Khair Strip Processing Ltd

• O.C. Number - 2530006_7
• Project description - 38T_10T x 30 Mtr Span ZKKW Crane
• Revision date - 15-04-2014
• Created on - 27-03-2014
• Total Crane Capacity: 38 Ton
• Number of Crabs 1
• Main Hoist 38 Ton
• Auxillary Hoist 1 10 Ton
• Total Hookpath
• Main Hoist 11500 mm
• Auxillary Hoist 21000 mm
• Baylength 30000 mm
• Span 300000 mm

Control

• Main - Cabin - With Master Controller
• Backup - Radio Remote - Joystick
• Crane Location - Indoor
• Control Voltage - 110VAC, 50Hz
• Class - M7
• Type - ZKKW Double Girder Crane
• Part feature - SIEMENS G120 INVERTER
• Design Standard  - IS3177:1999
