A-4012-0584_contact_tool_setting.zip Macro Installation Wizard V2.0.0 2022

H-2000-6525 (EN) Programming manual - H-2000-6525-0F-A.pdf Contact tool setting cycles for Fanuc and Meldas controllers programming manual

H-2000-6001 (EN) Backward Compatible Cycle Input Programming manual - H-2000-6001-00-A.pdf Programming manual: Contact tool setting cycles for Fanuc and Meldas controllers (backward-compatible inputs)

H-2000-6826 (EN) GoProbe programming manual - H-2000-6826-0A-A.pdf Programming manual: Renishaw GoProbe cycles for contact tool setting - for use with Fanuc and Meldas controllers

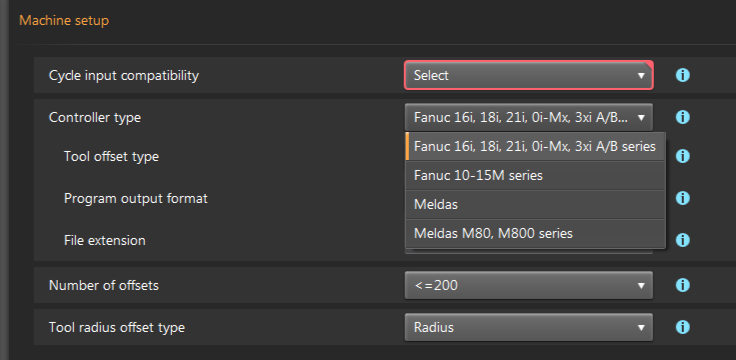

Controller type

Select the controller type.

Note about Fanuc options: It is advisable to check the following parameter to establish which setting to use!

Example: Fanuc 0i, 16i, 18i, 21i and 3xi series

If P6000.3=0 (V15) - select 'Fanuc 16i, 18i, 21i, 0i-Mx, 3xi A/B series' option
If P6000.3=1 - select the 'Fanuc 10-15M series' option.

For other controls refer to the machine parameter manual for an equivalent parameter.

When 'Meldas M80, M800 Series' is selected, the generated code will have the O removed from the program names and no program number at the beginning of the files. Cycles will then be M80/M800 ready

на выходе получаем файл - RenMacro.TXT
