SINUMERIK ONE Commissioning from Virtual to Real Documentation Manual for Turning and Milling machines

SINUMERIK_ONE_Training_Manual_SW6.25-07-2025.pdf

Sinumerik ONE Overview

The Sinumerik ONE CNC controller is available in modular (NCU 1740/NCU 1750/NCU 1760) and panel (PPU 1740) formats.
These offer a wide performance and complexity range.
Integrated into the SINAMICS S120 drive system and complemented by the SIMATIC S7-1500 automation system, the SINUMERIK ONE forms a complete digital system that is ideally suited for the mid to upper performance range
The SINUMERIK ONE CNC design offers outstanding flexibility and openness for any machine application.  The numerous components can be perfectly matched to each other - tailored precisely to the requirements of the mechanical engineer and the subsequent operating environment of the machine.
The SINUMERIK ONE combines CNC, HMI, PLC, closed loop control and communication tasks on one SINUMERIK NCU.

Many technologies are possible:

•  Turning
•  Drilling
•  Milling
•  Grinding
•  Laser machining
•  Nibbling
•  Punching
•  Tool and mould making
•  High-speed cutting applications
•  Woodworking and glass processing
•  Handling
•  Transfer lines
•  Rotary indexing machines
•  Mass production
•  JobShop production

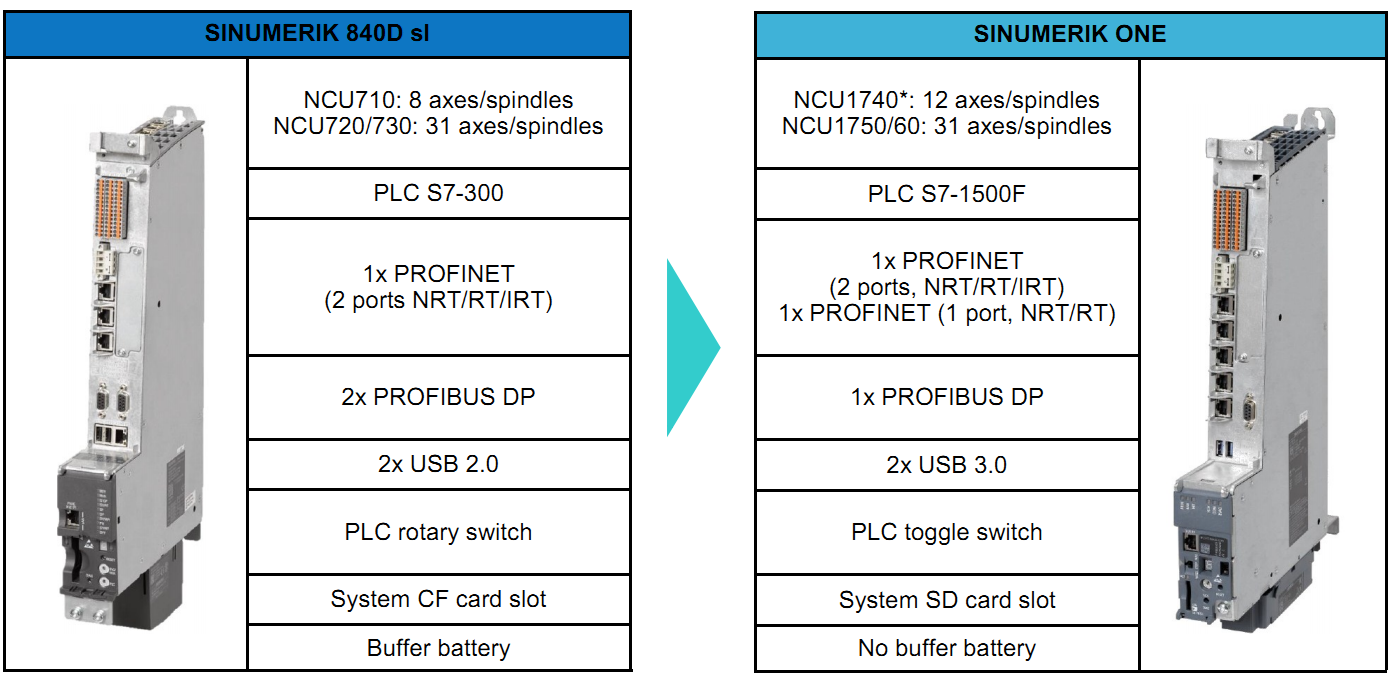

SINUMERIK ONE – NCUs

Main features in comparison with SINUMERIK 840D sl;

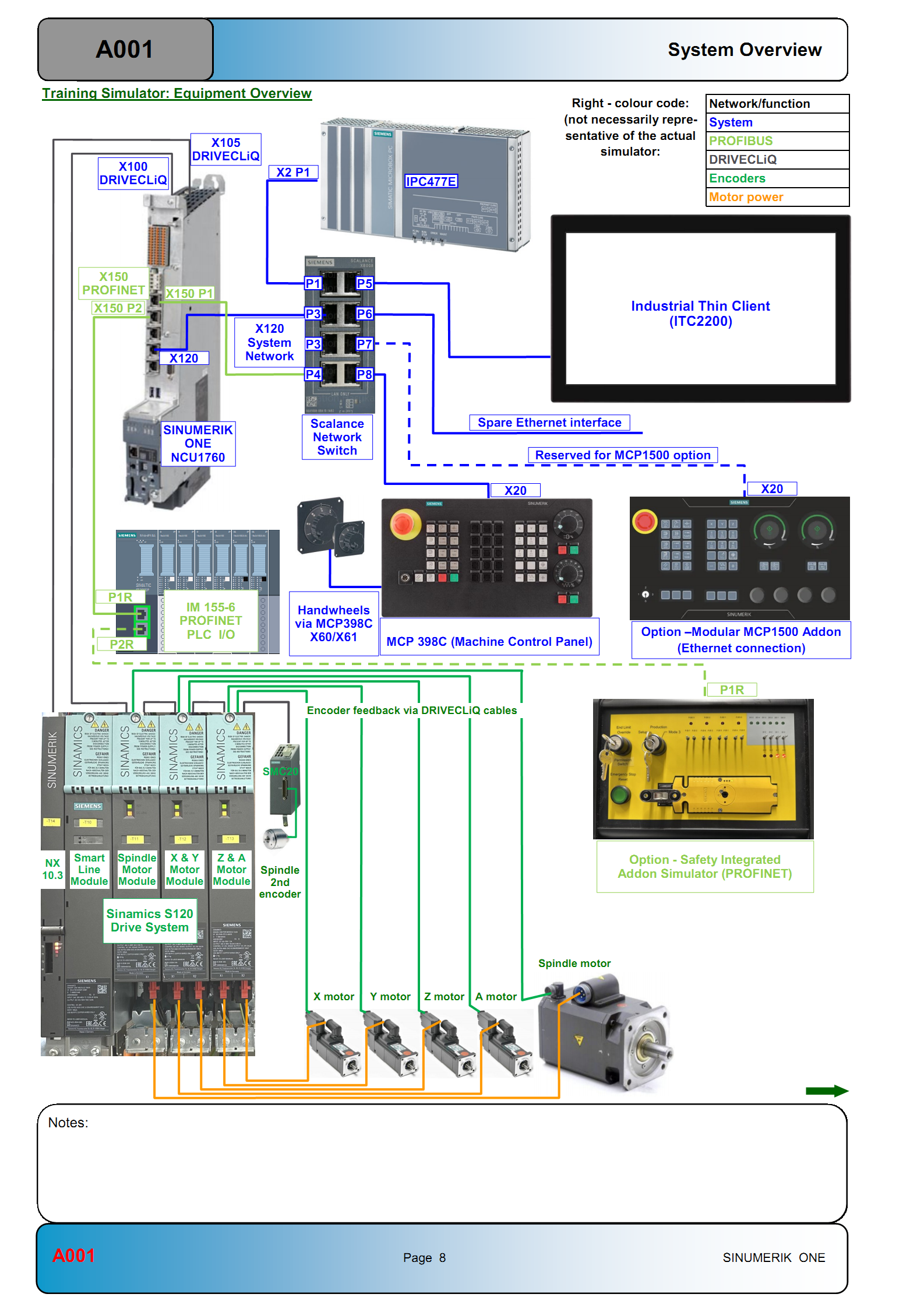

Equipment Overview
