Entry type: Application example Entry ID: 109794252, Entry date: 04/20/2021

Description

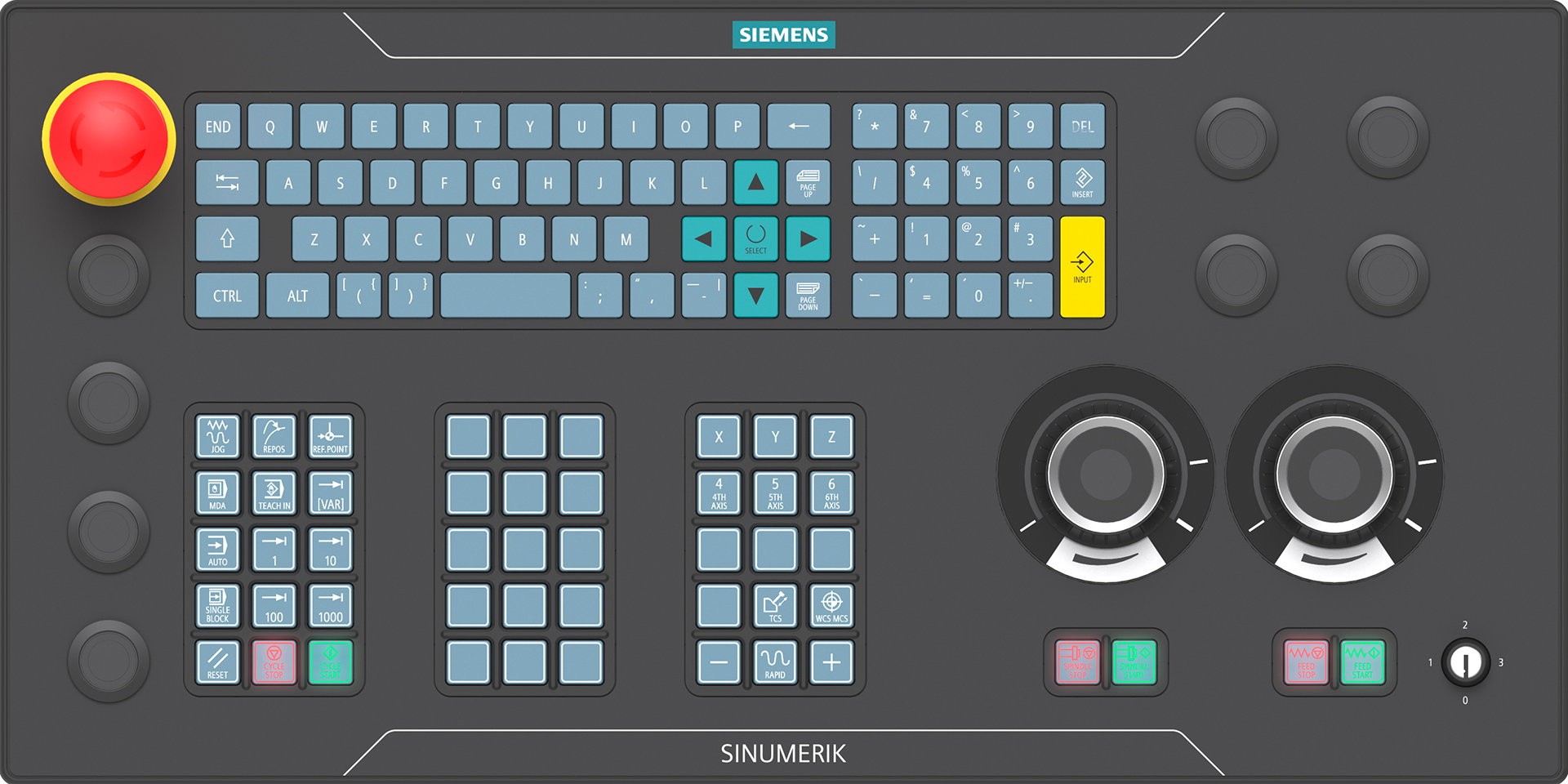

This application explains a possible procedure to commission a SINUMERIK ONE MCP at a SINUMERIK ONE control. The procedure on a 840D sl is identical; however, the graphics are different.
SINUMERIK ONE MCP is integrated using special, specified data types, which are transferred to a function block (ModMCPCtrlMilling). This function block ensures that signals are distributed to the HMI, axis and channel interface.

Documentation
SINUMERIK_ONE_MCP_Commissioning_V1.0_en.pdf (1,1 MB) - V1.0, 04/2021

Programs
ONE_MODMCP_20210416_1025.zip (468,5 KB) - Library TIA Portal V16
SINUMERIK_One_ModMcp_IE_NC6.14_V2.0_20210416_1024.zap16.zip (7,5 MB) - project TIA Portal V16
