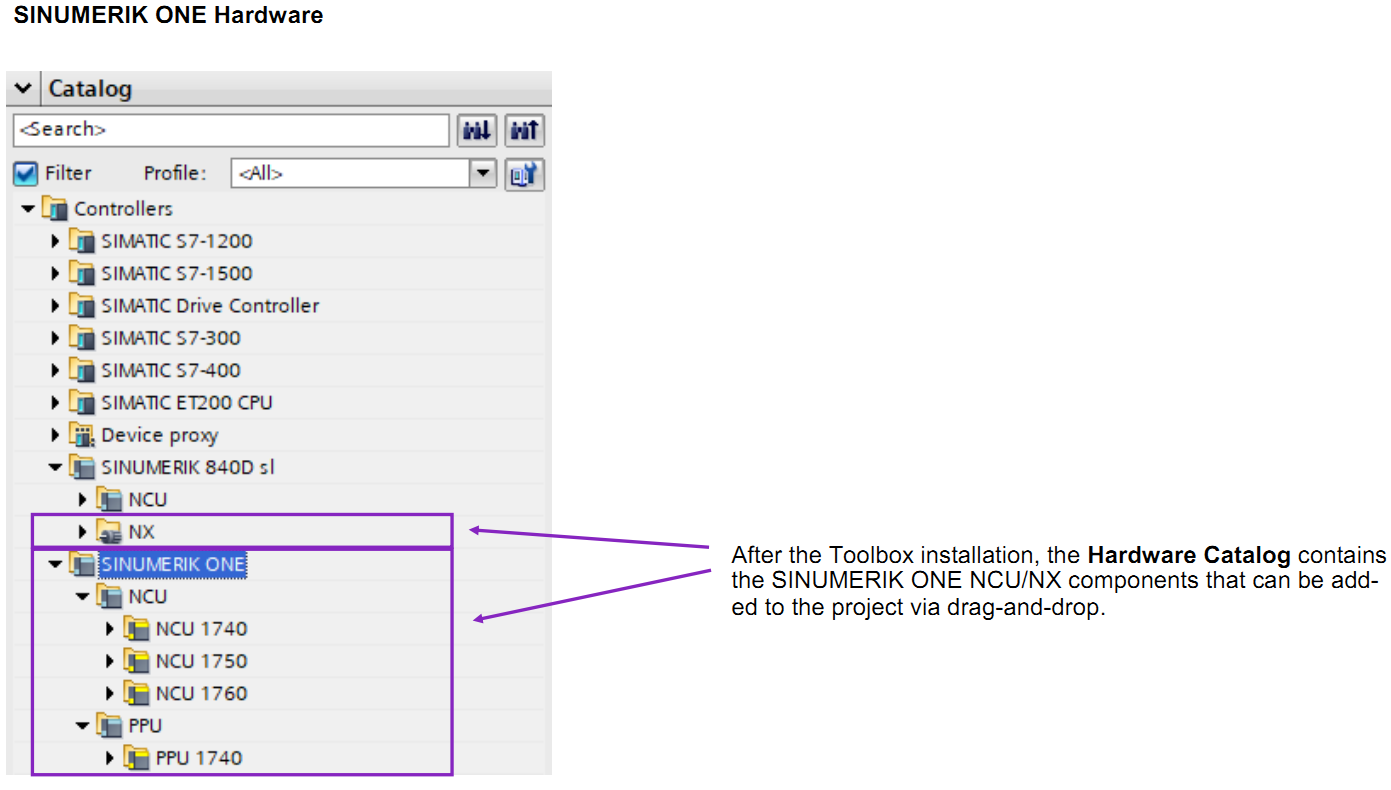

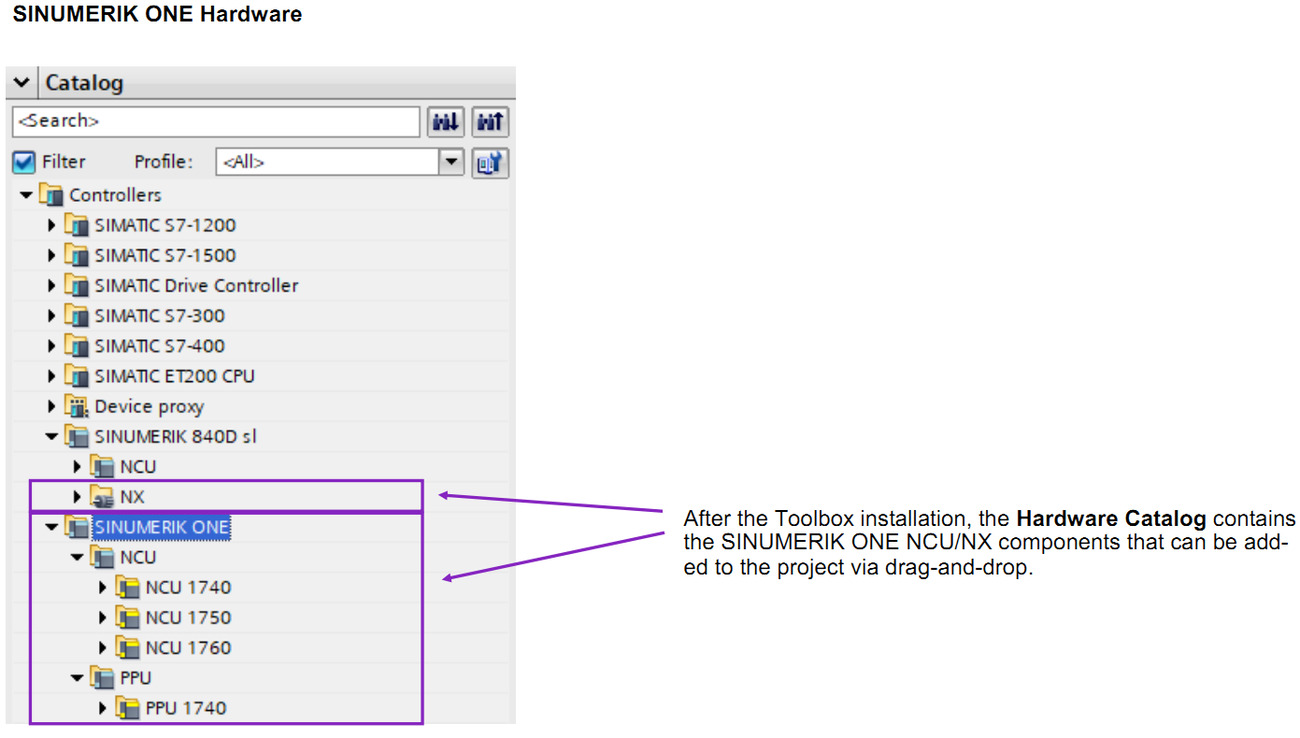

The TIA Portal STEP 7 Professional PLC Programming package is used to create the machine interface program for the SINUMERIK ONE.

• SINUMERIK_STEP7_Toolbox_TIA_V16
• SINUMERIK_STEP7_Toolbox_TIA_V14_SP1
• SINUMERIK_STEP7_Toolbox_TIA_V15
• SINUMERIK_STEP7_Toolbox_TIA_V15_SP1
• SINUMERIK_STEP7_Toolbox_TIA_V16_update2
• SINUMERIK_STEP7_Toolbox_TIA_V17_Update 10
• SINUMERIK_STEP7_Toolbox_TIA_V17_V17.00.00.00
• SINUMERIK_STEP7_Toolbox_TIA_V18_V18.00.00.01
• SINUMERIK_STEP7_Toolbox_TIA_V18_Update1
• SINUMERIK_STEP7_Toolbox_TIA_V19_SP1

SINUMERIK ONE Hardware

To add further SINUMERIK components, such as the machine control panel or the PP 72/48 I/O module, to the hardware catalog, the corresponding GSD and GSDML files must be installed. Some of these are identical for TIA Portal and S7 Classic. The associated description must be observed.

The current versions of the device description files can be found on the Service&Support pages on the Internet. SINUMERIK peripherals: GSD/GSDML files:

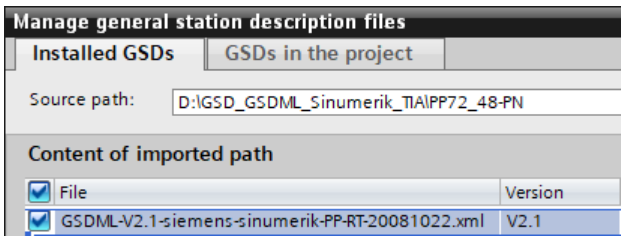

The corresponding GSD/GSDML (here PP72/48-PN) is installed via Options / Manage GSD.

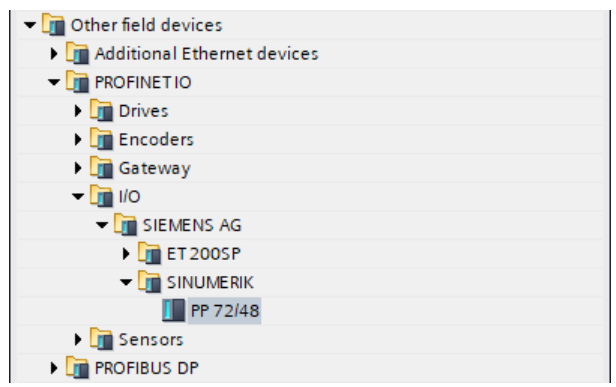

 After the successful installation, the hardware catalog is updated.

SINUMERIK ONE PLC Basic Program V6.25.0.0

After the Toolbox installation, the global libraries contain the SINUMERIK ONE PLC basic program in the available versions V6.15, V6.22, V6.23, V6.24 and V6.25.

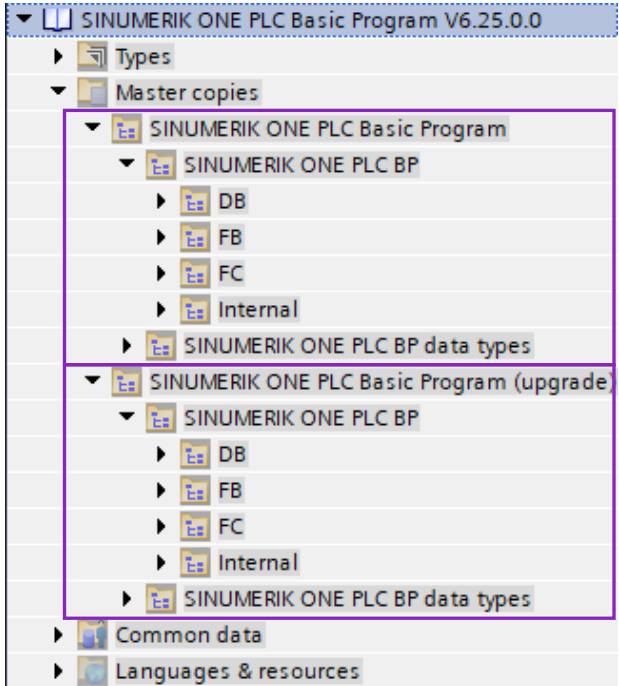

They contain the following copy templates from which the required blocks can be copied to the program blocks via dragand-drop.

SINUMERIK ONE PLC Basic Program for a complete new project.
Contains all required blocks for the full variant (31 axes, 10 channels), sorted into subfolders, as well as all required data types for DBs, MCPs and NC variables.

SINUMERIK ONE PLC Basic Program (upgrade) for a NC software upgrade.
Contains all know-how protected blocks for the full variant without the blocks to be changed by the user: FC12, DB5, DB75, DB78 and DB1001.

User data blocks from the basic program:

Unlike SINUMERIK Toolbox for STEP 7 V5.x, the user data blocks from the basic program are supplied from the Engineering System for the TIA Portal Toolbox:

•   Axes/spindles: Axis1 [DB31]…Axis31 [DB61]
•   Channels: ... Читать дальше »

Designation / Order number / GSDML files

SINUMERIK MCP, MPP6FC5303-xAFxx-xxxx 62332440_MCP-PN.zip (4 KB) - GSDML-V2.1-siemens-sinumerik-mcpRT-20111001.xml

SINUMERIK MCP 6FC5303-xAFxx-xxxx GSDML-V2.33-siemens-sinumerik-mcpRT-20190715.xml (54,9 KB) - GSDML-V2.33-siemens-sinumerik-mcpRT-20190715.xml

SINUMERIK I/O module PP 72/486FC5311-0AA00-xAA0 62332440_PP72_48-PN.zip (2 KB) - GSDML-V2.1-siemens-sinumerik-PP-RT-20081022.xml

SINUMERIK ONE MCP xxxx / all FW Versions
Support X20 – Port 1
6FC5303-0AP0y-yyyy
6FC5303-0AP51-yyyy
GSDML-V2.35-siemens-sinumerik-modMcp-20200525.xml (13,5 KB) - GSDML-V2.35-siemens-sinumerik-modMcp-20200525.xml

gsdml-v2.35-siemens-sinumerik-modmcp-20200326.xml.zip - gsdml-v2.35-siemens-sinumerik-modmcp-20200326.xml

gsdml-v2.35-siemens-sinumerik-modmcp-20200423.xml.zip - gsdml-v2.35-siemens-sinumerik-modmcp-20200423.xml

SINUMERIK ONE MCP xxxx / from FW Version V4.0.0  Support X20 – Port 1 und 2 6FC5303-0AP0y-yyyy
6FC5303-0AP51-yyyy GSDML-V2.44-siemens-sinumerik-oneMcp-20240229.xml (36,9 KB) - GSDML-V2.44-siemens-sinumerik-oneMcp-20240229.xml

Designation / Order number / GSD file

SINUMERIK MCP 6FC5203-0Axxx-1AAx 62332440_MCP_310_483.zip (7 KB) - Si018109.gse

SINUMERIK MPP 6FC5303-1AFxx-xxxx 62332440_MPP.zip (6 KB) - Si018122.gse

SINUMERIK handwheel connection module 6FC5303-0AA02-xxxx 62332440_HWM.zip (6 KB) - Si01812b.gse

SINUMERIK I/O module PP 72/48 6FC5611-0CA01-0AA0 / 6FC5611-0CA01-0AA1 62332440_PP72_48.zip (1 KB) - siem80a2.gsd

GSDML-for_3VA_COM800_COM100_V2_31.zip (5,4 KB) - GSDML-V2.3-Siemens-3VA-20150421.xml
GSDML_for_PAC3200_PAC4200_V2_3.zip (44,0 KB) - GSDML-V2.3-Siemens-SENTRON-20150421.xml
GSDML_V1_2.zip (43 KB) - GSDML-V2.25-Siemens-SENTRON-20121126.xml
GSDML_V1_1.zip (44 KB) - GSDML-V2.25-Siemens-SENTRON-20120214.xml
GSDML_for_PAC3200_PAC4200_V1_0.zip (46 KB) - GSDML-V2.25-Siemens-SENTRON-20110317.xml

GSDML-V2.34-Siemens-PAC_V30-20191014.zip - GSDML-V2.34-Siemens-PAC_V30-20191014.xml



69864408_TimeSynchronization_en.pdf - ENG

SIMATIC_HMI_WinCC_V7.0_Time_Synchronization.pdf - RUS

69864408_WinCC_TimeSyn_CODE_v40.zip - TIA V13 SP1

• Variant 1: PLC (master/slave)  ↔  HMI operator panel
• Variant 2: PLC (master)  →  HMI operator panel (slave)
• Variant 3: PLC (master)  →  HMI operator panel (slave)
• Variant 4: HMI operator panel (master)  →  PLC (slave)

69864408_WinCC_TimeSyn_DOC_v40_en.pdf - Time Synchronization with an HMI Operator Panel and a SIMATIC PLC WinCC V13 SP1, Comfort Panels, S7-1200/S7-1500 and S7-300/S7-400

69864408_WinCC_TimeSyn_DOC_en.pdf - Time Synchronization between WinCC V7 and S7 Controllers / WinCC V7.5 SP2, S7-1200, S7-1500
