hms_1000.gsd - Anybus-32 I/O PDP / Anybus-IO32 PROFIBUS DP-V0 slave
HMS_1001.GSD - Anybus-64 I/O PDP / Anybus-IO64 PROFIBUS DP-V0 slave
hms_1002.gsd - Anybus-DT PDP / ANYBUS-DataTransfer Profibus DP slave
hms_1003.gsd - Anybus-S PDP (FW 1.x) / ANYBUS-S Profibus DP slave
HMS_1013.gsd - Anybus-S DPV1 / Anybus-S PROFIBUS DP-V1 slave
HMS_1801.gsd - nybus-S Drive Profile DPV1 / Anybus-S Drive Profile DPV1 - ABSDP-DPV1
HMS_1803.gsd - Anybus Communicator - Slave / Anybus Communicator PROFIBUS
hms_1810.gsd - Anybus-IC PDP / Anybus-IC DP-V0 slave
HMS_1811.gsd - Anybus CompactCom DPV1 / Anybus-CC PROFIBUS DP-V1 slave
HMS_1813.GSD - Anybus-S DPV1 IM / nybus-S PROFIBUS DP-V1 slave supporting I&M
HMS_1833.gsd - Anybus X-gateway PDP-J1939 / Anybus X-gateway PROFIBUS to J1939
HMS_18F0.gsd - Anybus-M DPV1
HMSA1812.gsd - Anybus-M PROFIBUS DP-V1 Master
HMSA1814.gsd - Anybus CompactCom DPV0 / Anybus-CompactCom PROFIBUS DP-V0 slave
HMSA1836.GSD - X-gateway COPM / Anybus X-gateway CANopen master
HMSA1837.gsd - Anybus X-gateway Modbus-TCP / Anybus X-gateway Modbus-TCP Client with PROFIBUS DP-V1 slave.
HMSB1003.gsd - Anybus-S PDP (FW 2.x) / Anybus-S PROFIBUS DP-V0 slave
HMSB1803.gsd - Anybus Communicator - Slave / Anybus Communicator PROFIBUS slave
HMSB1811.gsd - Anybus CompactCom DPV1 (FW 2.x) / Anybus-CC PROFIBUS DP-V1 slave
HMSB1813.GSD - Anybus-S DPV1 IM (FW 4.X) / Anybus-S PROFIBUS DP-V1 NP30 slave supporting I&M
HMS_GSD_PROFIBUS_ALL_FILES.zip
hms-com-gsd-pdp-hmsx183b.zip - HMSA183B.gsd HMSB183B.gsd

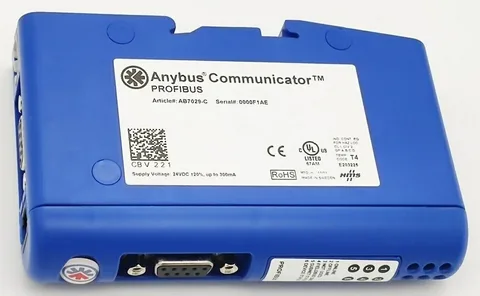

The Anybus Communicator is shipped with two GSD files.
The "HMSA183B.gsd" file is the standard GSD file which has slot definitions and forces modules to be plugged into specific slots. This allows the Anybus Communicator to generate diagnosis data when there is a mismatch between the PLC configuration and the Anybus Communicator's configuration.
The "HMSB183B.gsd" file is the alternative GSD file which doesn't have any slot definitions and allows the modules to be plugged into any slot, this also allows the same type of module to be used multiple times. In order to use this GSD file the configuration option "Allow any module mapping" must be enabled in the Anybus Communicator's configuration. When this GSD file is used no diagnosis data is available from the Anybus Communicator.
hms-gsd-abx-pdps-legacy.zip - HMSB1831.gsd / Anybus X-gateway / DPV1 slave, with I&M support
